Products Details

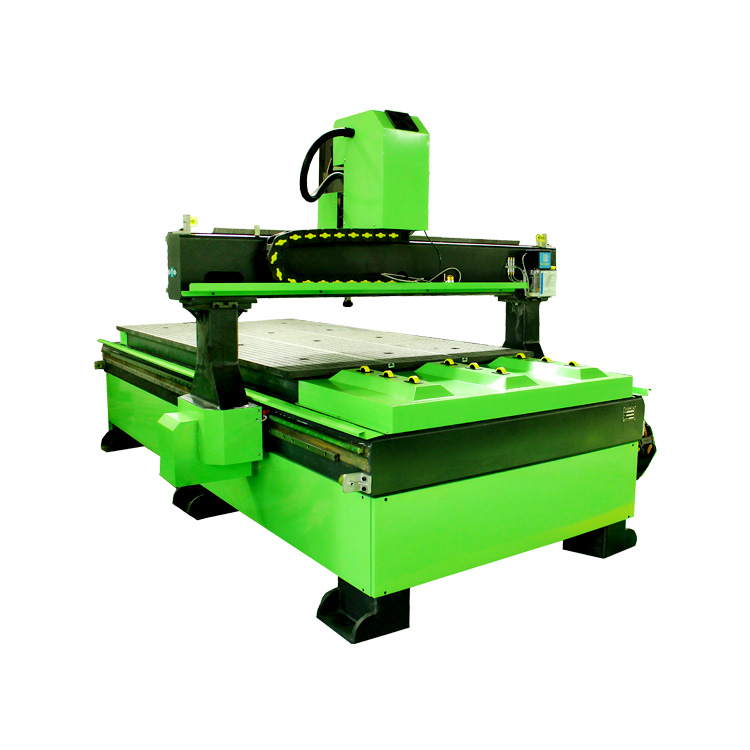

Features: 1.This Model is NEW Design DA1325 CNC Router, made of thickness square tube welded bed, imported square rail and high speeding stepper motor & driver. It can do cutting and engraving many materials, such as MDF, Acrylic, wood, PVC, etc. It’s widely used in advertising and woodworking industries. 2.The machine adopts welding bed with 4mm thickness square tube, so that the accuracy of machine will be not deformed easily. 3. With China Well-known brands stepper motors and drivers, Hiwin linear guide rail, XY axis gear and rack transmission,Z axis TBI higher precision Ball Screws, ensure fast speed, big loading capacity, low noise, and longer time working; 4. Professional NC-Studio / Richauto Panel control system, Air cooling spindle 3.5KW or 6KW, long working life, low noise, strong cutting ability. 5.Vacuum and T-slot combined worktable can both absorb big materials by vacuum power and fix small materials by clamps. 6. Electronic control components from famous brand in China such as CHNT / DELIXI company. 7. Auto Oil-filling System for gularly maintenance (lubricating) is so convenient to use. Applications 1. Wood industry: wood furniture making, 3d wood relief carving, wooden craftwork production Speakers, game consoles cabinets, computer tables, sewing machine table etc. 2. Advertising products industry: 3D letters sign making, acrylic cutting and engraving. 3. Board processing industry: insulation piece, acrylic board, plastic chemical products, PCB, compact grade laminate, ABS, PP, PE and other cementitious mixtures’s milling process. 4. Decoration industry: folding screen, wave plates, advertising boards, sign making and logo’s processing. 5. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles. 6. Processing material: engraving, milling and cutting processing for acrylic, PVC, artificial stones plastics and soft metal sheets and so on. Parameters
Model | DA1325 |
Working Size | 1300×2500×200mm |
Spindle | 6KW air cooling |
Guide Rails | Square Rails Hiwin 25mm |
Transmission | X Y Rack gears Z TBI Ball screw |
Motor | Delta 750+ Planetary reducer |
Inverter | 7.5KW Delta |
Control system | NC-Studio / A11 Panel/NK105 |
Moving Speed | Max 25м / min |
Engraving Speed | Max 20м / min |
Spindle | 3.5KW air cooling (Optional 6KW) |
Spindle speed | 6000-24000 rpm |
Table | T-slot & Vacuum |
Vacuum pump | 5.5kw Vaccum pump |
Dust Collecter | 3kw |
Lubrication | Centralized Lubrication |
Software | Type3 / ARTCAM/ Ucancam |
Working Voltage | 380V ±10%, 50Hz/60Hz |
